Behavioral Patterns – Command

Command – It turns the client’s requests into a stand-alone object which contains all information about the client’s requests. These transformations let the programs pass the client requests to method arguments, delay or queue the client’s execution, and undoable operations.

From Design Pattern – Behavioral Patterns

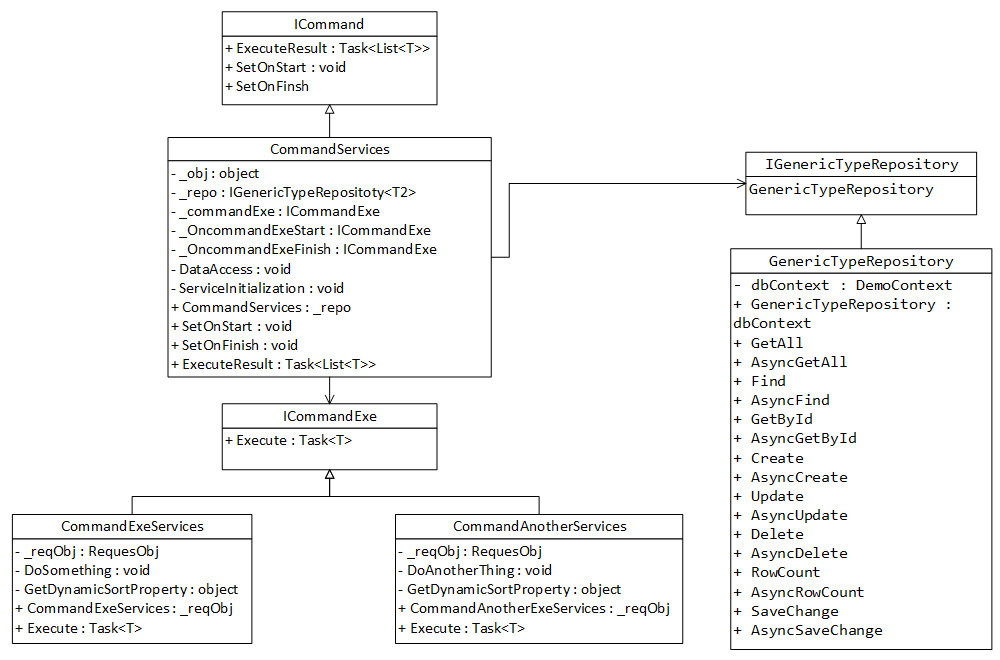

Structure

Applicability

• Using its pattern is when the program requests want to parameterize objects with operations.
• Using its pattern is when the programs want to queue operations, schedule their execution, or execute them remotely.
• Using its pattern is when the programs want to implement reversible operations.

Pros and Cons

How to Implement

#1 Basic Sample

class Program
{
 static void Main(string[] args)
 {
  Invoker invoker = new Invoker();
  invoker.SetOnStart(new SimpleCommand("Say Hi!"));
  Receiver receiver = new Receiver();
  invoker.SetOnFinish(new ComplexCommand(receiver, "Send email", "Save report"));

  invoker.DoSomethingImportant();

  Console.ReadKey();
 }

 public class Receiver
 {
  public void DoSomething(string a) => Console.WriteLine($"Receiver: Working on {a}.");

  public void DoSomethingElse(string a) => Console.WriteLine($"Receiver: Also working on {a}.");
 }

 public interface ICommand
 {
  void Execute();
 }

 public class SimpleCommand : ICommand
 {
  private string _payload = string.Empty;

  public SimpleCommand(string payload)
  {
   _payload = payload;
  }

  public void Execute() => Console.WriteLine($"SimpleCommand: See, I can do simple things like printing ({this._payload})");
 }

 public class ComplexCommand : ICommand
 {
  private Receiver _receiver;

  private string _a = string.Empty;

  private string _b = string.Empty;

  public ComplexCommand(Receiver receiver, string a, string b)
  {
   _receiver = receiver;
   _a = a;
   _b = b;
  }

  public void Execute()
  {
   Console.WriteLine("ComplexCommand: Complex stuff should be done by a receiver object.");
   _receiver.DoSomething(_a);
   _receiver.DoSomethingElse(_b);
  }
 }

 public class Invoker
 {
  private ICommand _onStart;

  private ICommand _onFinish;

  public void SetOnStart(ICommand command) => _onStart = command;

  public void SetOnFinish(ICommand command) => _onFinish = command;

  public void DoSomethingImportant()
  {
   Console.WriteLine("Invoker: Does anybody want something done before I begin?");

   if (_onStart is ICommand)
    _onStart.Execute();

   Console.WriteLine("Invoker: ...doing something really important...");

   Console.WriteLine("Invoker: Does anybody want something done after I finish?");

   if (_onFinish is ICommand)
    _onFinish.Execute();
  }
 }
}

#2 Web Application Project

Step 1 Create the interface class and the service class in the Core project. The interface class file name sets the “ICommand” and “ICommandExe.” One the interface class is for the BLL to create. Another interface class file is for the command pattern executing. The service class part also does the same things and has three files. One service class file is for the BLL. Another service class file is for the command pattern progress. Other service class files are also for the command pattern progress, but one part is different, which means it does other things.

Step 2 Adding the task in the ICommandExe interface class file with the generic type mechanism. The ICommand interface class file adds the task result, the setting on the start function, and the finish function. The ICommand interface class file increased minor difficulty levels, adding the “in” and “out” operator mechanisms. I hope it can increase the sample complex and approach the real-time situation.

public interface ICommand<in T1, out T2> where T1: class where T2: class
{
 Task<List<T>> ExecuteResult<T>(T1 requestObj);

 void SetOnStart(ICommandExe commandExe);

 void SetOnFinsh(ICommandExe commandExe);
}

public interface ICommandExe
{
 Task<T> Execute<T>(object obj, object reqObj) where T : class;
}

Step 3 The service part files let us start from the CommandService class file to edit. The CommandService class file must inherit the ICommand interface class, then add the IGenericTypeRepository interface class by DI mechanism and a few variables and functions. Suppose the data has been accessed before the command pattern operations. The command service class file can focus on the command pattern concept to edit. Remember that the ICommand interface class file has the “in” and “out” operator mechanism, so the developers must be careful to edit it.

Step 4 The CommandExeService class file will focus on the command pattern operation executing. It inherits the ICommandExe interface class files, then adds the private function about the command operation progress in the CommandExeService class file.

Step 5 Create the command pattern-related files in the Web project, such as the controller and view parts. A view part only creates the index page without the CRUD page.

Step 6 Register the command pattern’ service class files and the interface class files in the Web project.

• GitHub

Reference

• Refactoring.Guru – Command
• Dofactory – Command Pattern
